Excel Water System – AS5 Series
Production Levels (liters/day)
The AS5 Models supply 19 liters (5 U.S. gallons) pure water per day.
| Dry Air Temp (C) | Relative 10% |
Humidity 20% |
30% |
40% |
50% |
60% |
70% |
80% |
90% |
100% |
| 16 | Frost | Frost | Frost | Frost | Frost | Frost | Frost | Frost | Frost | Frost |
| 18 | Low | Low | Low | Low | 7 | 17 | 22 | 27 | 30 | |
| 20 | Low | Low | Low | Low | 9 | 16 | 21 | 25 | 30 | 33 |
| 22 | Low | Low | Low | Low | 14 | 22 | 24 | 29 | 33 | 36 |
| 24 | Low | Low | Low | 9 | 16 | 22 | 27 | 32 | 36 | 40 |
| 26 | Low | Low | Low | 12 | 18 | 24 | 30 | 35 | 39 | 43 |
| 28 | Low | Low | Low | 14 | 21 | 27 | 32 | 38 | 43 | 46 |
| 30 | Low | Low | 8 | 16 | 23 | 29 | 35 | 39 | 44 | 48 |
| 32 | Low | Low | 8 | 18 | 25 | 31 | 37 | 42 | 47 | 42 |
| 34 | Low | Low | 11 | 19 | 27 | 33 | 39 | 45 | Cycling | Cycling |
| 36 | Low | Low | 12 | 22 | 29 | 36 | 41 | Cycling | Cycling | Cycling |
| 38 | Low | Low | 13 | 22 | 30 | 37 | Cycling | Cycling | Cycling | Cycling |
| 40 | Low | Low | 14 | 23 | 31 | Cycling | Cycling | Cycling | Cycling | Cycling |
| 42 | Low | Low | 15 | 24 | Cycling | Cycling | Cycling | Cycling | Cycling | Cycling |
| 44 | Cycling | Cycling | Cycling | Cycling | Cycling | Cycling | Cycling | Cycling | Cycling | Cycling |
AS5 Series – Specifications & Parameters
| Origin | United States of America |
| Water Production Rate | 19 litres per day (5 U.S. gallons) |
| Electrical Consumption | 0.8 kwh/ltr (3 kwh/gallon) |
| Unit Dimensions | Height 667 mm x Width 394 mm x Depth 469 mm |
| Unit Net Weight | 22.7kg (50 pounds) |
| Electrical | WF5110 model: 115 Volts/60 Hertz WF5220 model: 220 Volts/50 Hertz |
| Water Tank Capacity | 7.5 litres (2 U.S. gallons) |
| Unit Construction | Molded plastic front; color-matched sheet metal back |
| Unit Color | Neutral light cream/color-matched plastic and sheet metal |
| Air Intake Fan | Adjustable variable speed fan with high/low settings |
| De-icer | Automatic de-icer |
| Water Filter | Activated granular carbon, particulate & contaminant removal |
| Air Filter | High-quality particulate removal |
| Automatic Shutoff | Unit shutoff; Tank-full shutoff; No tank shutoff; Faulty tank shutoff |
| Full/Adjust Tank Indicator Light | Indicator on control panel illuminates when tank is full |
| Side Water Drain | Continuous drain of water into alternate tank |
| Water Tank Construction | High-density plastic/front loading/recessed carrying handles |
| Power Cord 2m | 2m (6 foot)/three-prong/insulated |
| Operational Life | 7 years |
| Refrigeration Circuits per Unit | 1 |
| Compressor Type | Hermetic |
| Number of Compressors | 1 |
| Design Temperature | Max. Operating conditions 100°F drybulb with 74.80°F wetbulb Min. Operating conditions 50°F |
| Design Inlet Air Relative Humidity | 50% |
| Air Flow Speed | 50 hz: high speed 186 CFM low speed 178 CFM 60 hz: high speed 220 CFM low speed 186 CFM |
| Air Filter | Excel part number AF215 |
| Water Filter | Excel part number WF215 |
| Refrigerant | R22 |
AS5 Series – Psychometric Chart
WaterFinder™ System vs. Bottled Water
| WaterFinder™ Water System | Bottled Water |
| WaterFinder™’s water is more refreshing because water is produced when you need it | Bottled water is processed days, weeks or even months before you start drinking it |
| WaterFinder™ water is delicious tasting, chemical free and odor free | Bottled water sometimes tastes musty or stale and includes some chemicals for preservation |
| The WaterFinder™ unit is conveniently located in the location of your choice | Bottled water units must be located near unused bottle storage to avoid excess strain when transporting the heavy bottles |
| The WaterFinder™ drinking system requires no storage space for bottles | Bottled water requires valuable storage space for both full and empty bottles |
| There is no physical effort or strain when using the WaterFinder™ water system | Bottled water requires the strain of changing the 5 gallon bottles, which may cause injury |
| The WaterFinder™ water system provides an uncontaminated chemical free continuous supply of delicious water at your fingertips | Bottled water can be purchased in set sizes and set limits causing consumers to ration the use of bottled water |
| WaterFinder™ water is healthy, it is laboratory tested and is free of any contaminants | The bottled water industry is not regulated by any specific standards or requirements |
| The WaterFinder™ water system needs no water source | Bottled water uses existing water sources which may be contaminated, and chemicals must be added to remove any contaminants |

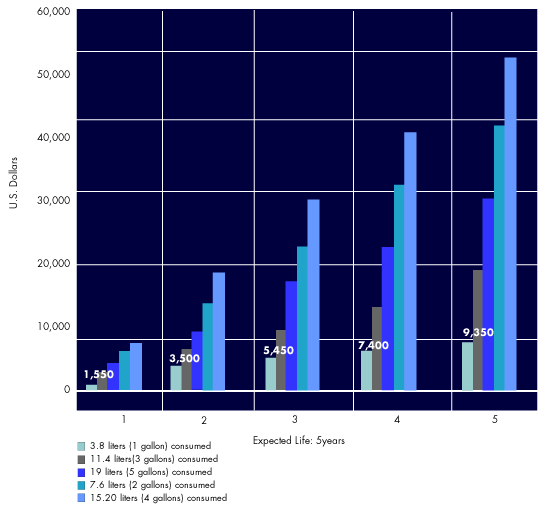

Recovery Costs vs. Evian
